HDPE 24 Core GYXTW Armoured Fiber Optic Cable PBT

Shenzhen Zhaoxian Special Optical Fiber Cable Technology Co., Ltd.

HDPE 24 Core GYXTW Armoured Fiber Optic Cable PBT

  • 1
  • 2

Brand Name : ZXOFC

Model Number : GYXTW

Certification : CE ISO9001

Place of Origin : ShenZhen,China

MOQ : 2KM

Price : Negotiable

Payment Terms : T/T, Western Union,LC

Supply Ability : 10000 KM per month

Delivery Time : 5-10 working days

Packaging Details : Wooden drum packing for export

Fiber type : SM or MM(OM1, OM2, OM3,OM4,OM5)

Outer sheath : HDPE

Strength member : Parallel steel wire + steel tape

Application : Direct buried, underground, Aerial

Fiber count : 1-24 core

Fiber color : Red,black or customized

Contact Now

2 / 4 / 6 / 8 / 12 / 16 / 24 Core Single Mode Outdoor Armoured GYXTW Fiber Optic Cable Price Per Meter

Description

2~24 Core GYXTW Fiber Optical Cable, The fibers, 250µm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with

a water-resistant filling compound. A Fiber Reinforced Plastic (FRP), sometimes sheathed with polyethylene (PE) for cable with high fiber count,

locates in the center of core as a metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular

cable core. An Aluminum Polyethylene Laminate (APL) is applied around the cable core, which is filled with the filling compound to protect it from

water ingress. Then, the cable is completed with a PE sheath.

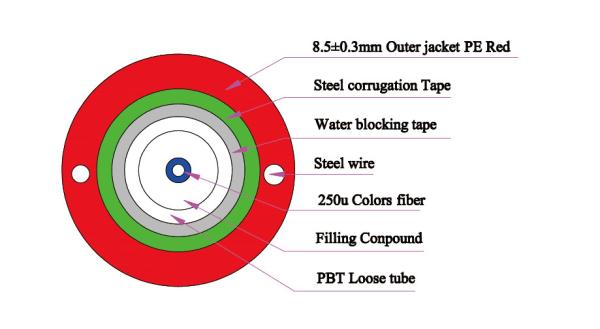

Features

* To fill the single mode or multi-mode fibers into the PBT loose tube made of high modulus polyester.

* The inside of the tube is filled with water-proof compounds.

* The outside of loose tube is longitudinally wrapped with plastic coated steel tapes.

* Between the steel tape and the loose tube, water-proof material is filled to ensure the compactness and the water resistence of
the cable.

* Two parallel steel wires are placed at the two sides of the steel tape. The steel wires are all inside the (PE) outer jacket.

Technique Parameter

No. of cable
2~8
10~12
14~24
Fiber Model
G.652D
Strength Member
Material
Steel Wire
Diameter
(±0.05)mm
0.8
Loose Tube
Material
PBT
Diameter
(±0.06)mm
2.1
2.4
3.0
Thickness
(±0.03)mm
0.32
0.35
0.4
The Max.Core NO./Tube
8
12
24
Water Blocking layer(Material)
Water Blocking Tape
Armoring
Material
Steel Strip
Thickness
(±0.03)mm
0.25
Outer Sheath
Material
MDPE
Thickness
(±0.2)mm
2.0
Cable Diameter(±0.2)mm
8.0
8.3
9.0
Cable Weight(±5)kg/km
60
63
90
Min. bending radius
Without Tension
10.0×Cable-φ
Under Maximum Tension
20.0×Cable-φ
Temperature range
(℃)
Installation
-20~+60
Transport&Storage
-40~+70
Operation
-40~+70

Packing

Each single cable length been wound on an iron stand-wooden composite or pure wooden drum.

Standard drum length is 2000m ±2%, or it can be delivered as customer requirement but not longer than

6000m with a tolerance.

Covered by plastic buffer sheet.

Sealed by strong wooden battens.

At least 1m of cable inner end should be reserved for testing.

HDPE 24 Core GYXTW Armoured Fiber Optic Cable PBT
